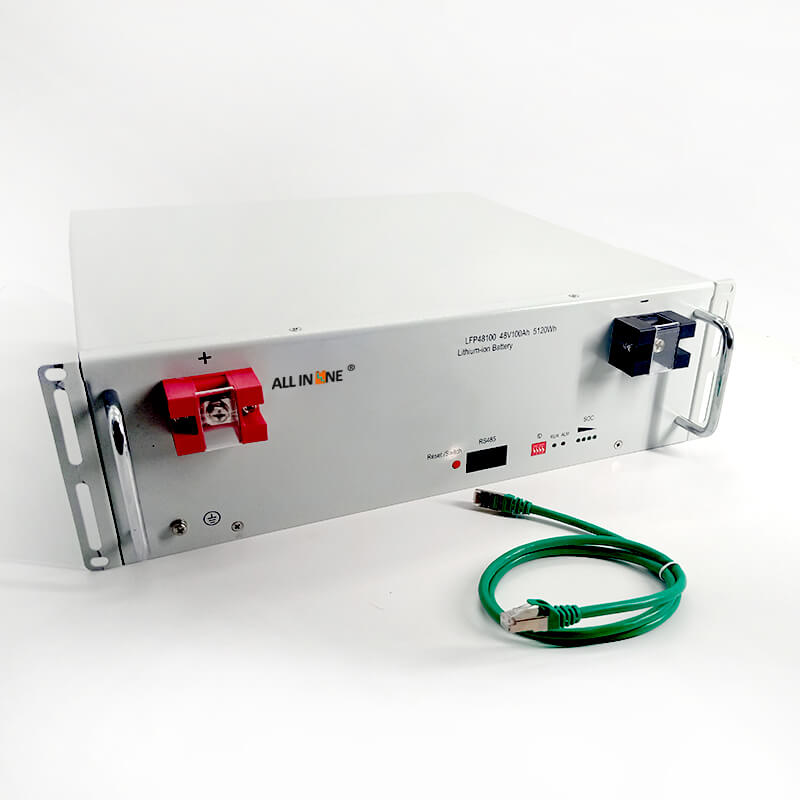

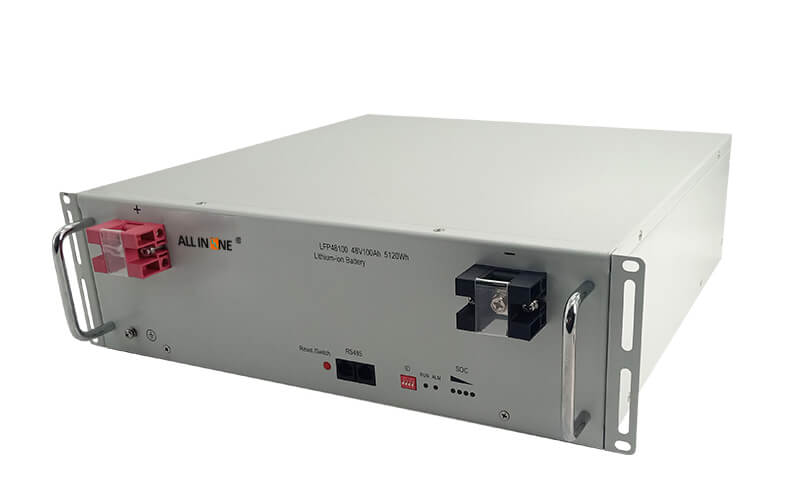

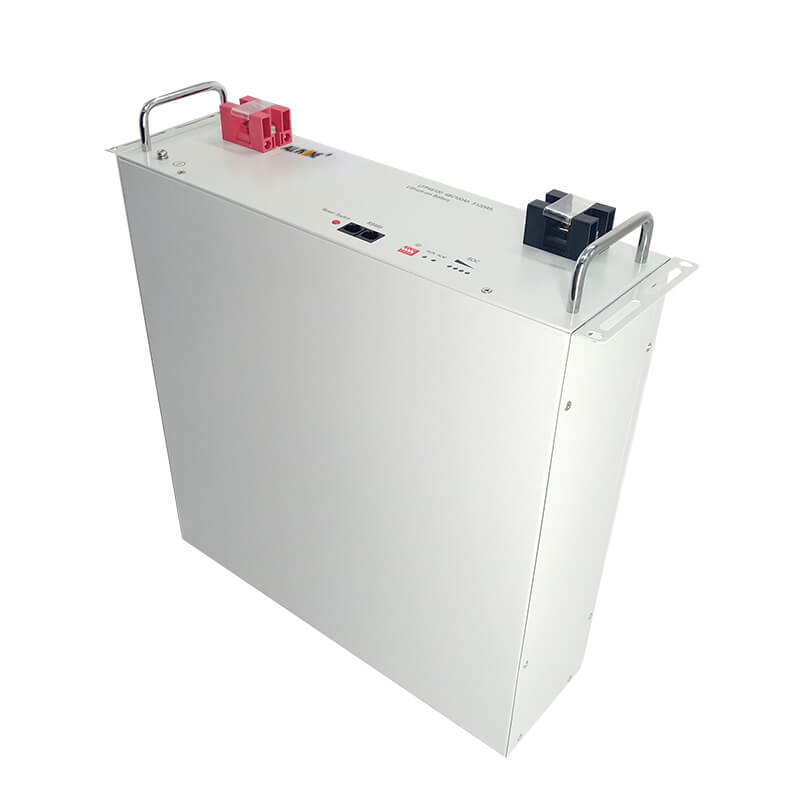

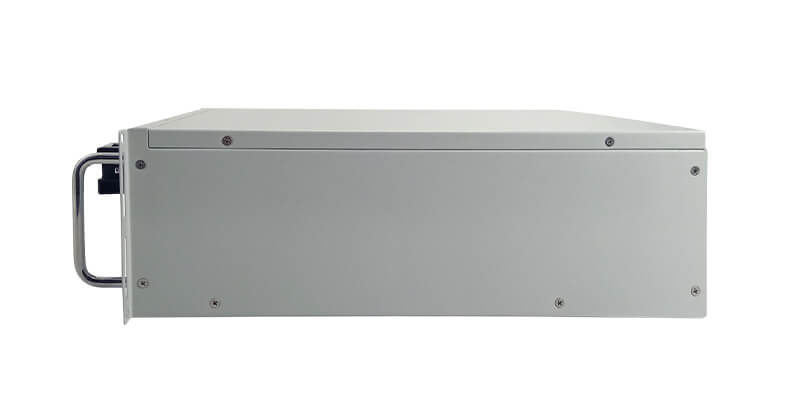

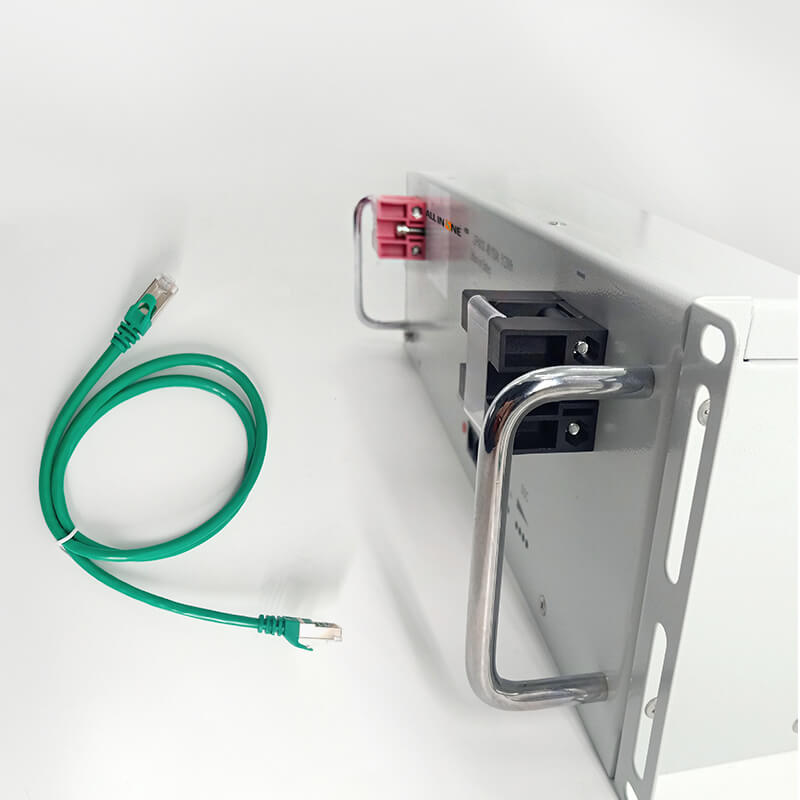

ALL IN ONE lithium ion battery 48v Solar Storage Lithium battery 50Ah 100Ah 200Ah Solar Energy Lithium Polymer battery Bank

2021-09-01 03:50

Especificación

Características eléctricas

Tensión nominal
48V
Capacidade nominal
50Ah
Enerxía
2400WH
Ciclo de vida
3000 Cycles
Resistencia interna
≤50mΩ

Carga estándar

Tensión de carga máxima
14,0 ~ 14,6 V.
Modo de carga
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of
14,6 V ata que a corrente non foi
máis de 0,02C
Corrente de carga
20A
Corrente de carga máxima
50A
Descarga estándar
Corrente de descarga
50A
Máx. Corrente continua
80A
Corriente máxima de impulso
200A (<3S)
Tensión de corte de descarga
10.0
Condición de funcionamento
Temperatura de carga
0 ℃ a 45 ℃ (32 ℉ a 113 ℉) @ 60 ± 25% de humidade relativa
Temperatura de descarga
-20 ℃ a 60 ℃ (-4 ℉ a 140 ℉) @ 60 ± 25% de humidade relativa
Temperatura de almacenamento
0 ℃ a 45 ℃ (32 ℉ a 113 ℉) @ 60 ± 25% de humidade relativa
Resistencia ao po de auga
IP55
IP55
Estrutura
Formato e cela
IFR32700 N65,4S16P
Carcasa
Plástico
Dimensión (L * W * H * TH)
Peso
Terminal
M8

Función
1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles, 100% DOD.
2. Built-in automatic protection function to prevent overcharging, over-discharging, over-current and overheating. 3. Maintenance
free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Can be charged using most standard lead acid charge (set).
7. Wide temperature range: -20 ° C ~ 60 ° C.
8. Support for series application extensions (up to 51.2V) and two parallels.

Aplicación

A nosa fábrica

ALL IN ONE is expert with ISO9001, ISO14001 on manufacturing CE,TUV,RoHS & CCC solar products to over 60 countires since 2010. Covering solar inverters, MPPT controllers, solar panels and solar storage batteries. And ALL IN ONE has experienced designing and installation teams on solar system, either off grid or on grid. This ability can help us better support our customer's capability to win new sales and do an excellent maintenance.

Come with ALL IN ONE, All for power your life!



Embalaxe e envío

FAQ

Q1: What products do you offer?

Our main products is Lithium Ion Batteries. Now we can offer Home Energy Storage, Telecom Battery, Battery Pack,Lithium Battery 24V 48V etc.

Q2: How can I get a sample to check your quality?
If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.

Q3: Can I have the products with my own logo?
Yes. We can offer both OEM and ODM service with prototype design and small MOQ.

Q4: How long can I expect to get the sample?
The samples will be ready for delivery in 3~5days after we receive the payment.

Q5:Can you give me a discount?
Yes, based on wholesale service, we have better discount for bigger quantities. We will quote you the best price based on your order quantity.

Q6. What are the advantages that distinguish from others?
1. Official cooperative supplier of China State Grid Official
2. Withprofessional product development team
3. Rich experience in wireless computer room
4. With superior energy storage solution

Q7. How to do if I can’t reach your minimum order quantity?
Do not worry about that. If you can’t reach MOQ for each item, we suggest you refer to our goods in stock and group sourcing items. We also can send you the latest list of the prompt goods for your reference.

Nota: Somos fabricantes de baterías. Todos os produtos non son compatibles co comercio polo miúdo, só facemos negocios B2B. Póñase en contacto connosco para coñecer os prezos dos produtos.
