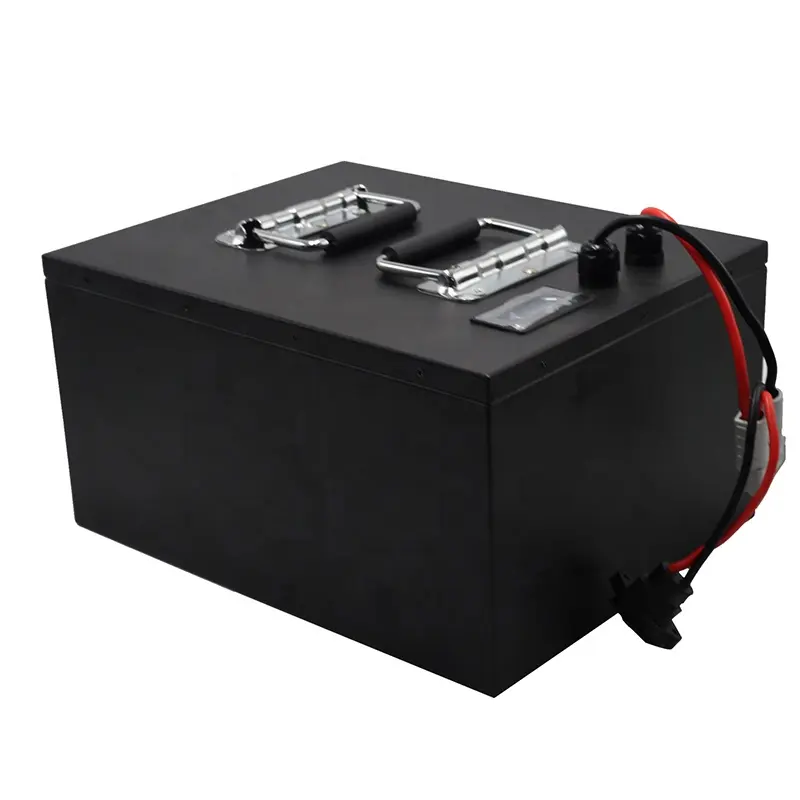

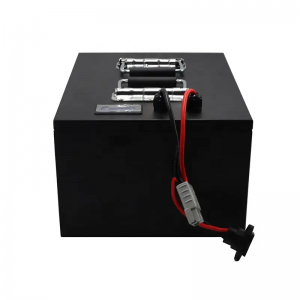

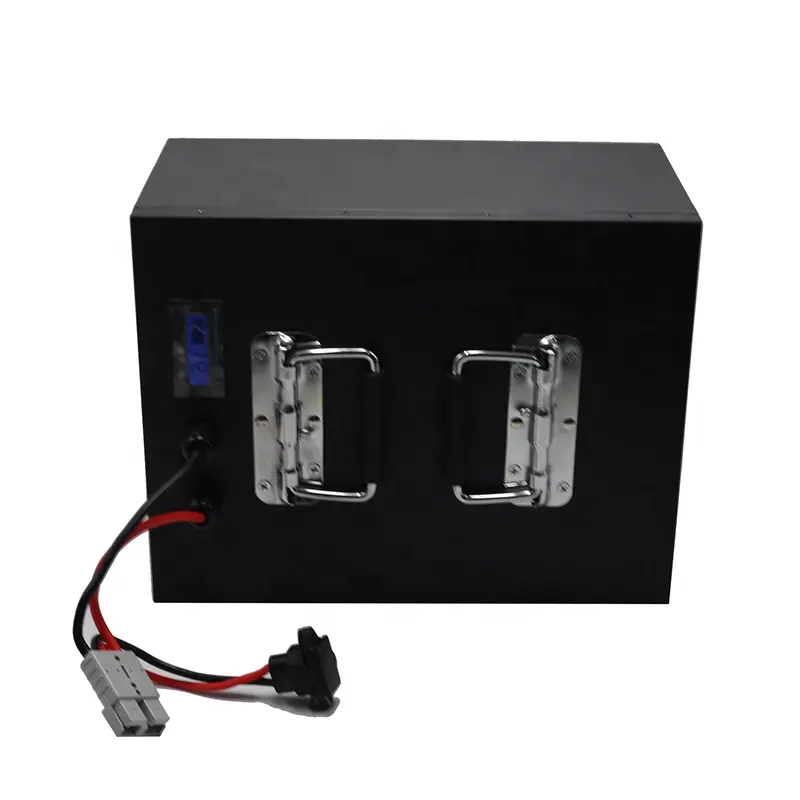

Paquete de batería personalizado LiFePO4 72v 60ah batería de vehículo eléctrico paquete de iones de litio para coches EV

2023-06-06 02:13

Especificación

Marca	TODO EN UN
Modelo	AIN7260
Garantía	5 Anos
Tensión nominal	76,8 V
Capacidade nominal	[email protected]/customize
Enerxía	4416Wh
Resistencia interna	≤50mΩ
Ciclo de vida	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Autocarga	≤3,5% mensual aos 25 ℃
Tensión de carga máxima	87.6 V
Modo de carga	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Corrente de carga	30A
Corrente de carga máxima	60A
Corrente de descarga	30A
Max. discharge Continuous Current	60A
Corriente máxima de impulso	120A(<3S）
Tensión de corte de descarga	60V
Temperatura de carga	0 ℃ a 45 ℃ (32 ℉ a 113 ℉) @ 60 ± 25% de humidade relativa
Temperatura de descarga	-20 ℃ a 60 ℃ (-4 ℉ a 140 ℉) @ 60 ± 25% de humidade relativa
Temperatura de almacenamento	0 ℃ a 45 ℃ (32 ℉ a 113 ℉) @ 60 ± 25% de humidade relativa
Resistencia ao po de auga	IP55
Formato e cela	LFP  60AH 24S1P/customize
Carcasa	Metal Case
Dimensión (L * W * H * TH)	personalizar
Peso	50kg
Terminal	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
Método de carga	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
Certificado	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Recordatorio

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Aplicación

A nosa fábrica

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Embalaxe e envío

Embalaje

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Envío

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



FAQ

P: Como debo pagar? Que modos de pago acepta?
A: T/T, PayPal, Western Union.

P: ¿É aceptable o pedido de mostra?
R: Si, para a maioría das baterías, os pedidos de mostra para probar a calidade son razoables e aceptables.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Por danos causados, como a protuberancia da batería / soldada, batería sen protección BMS causada pola carga.
