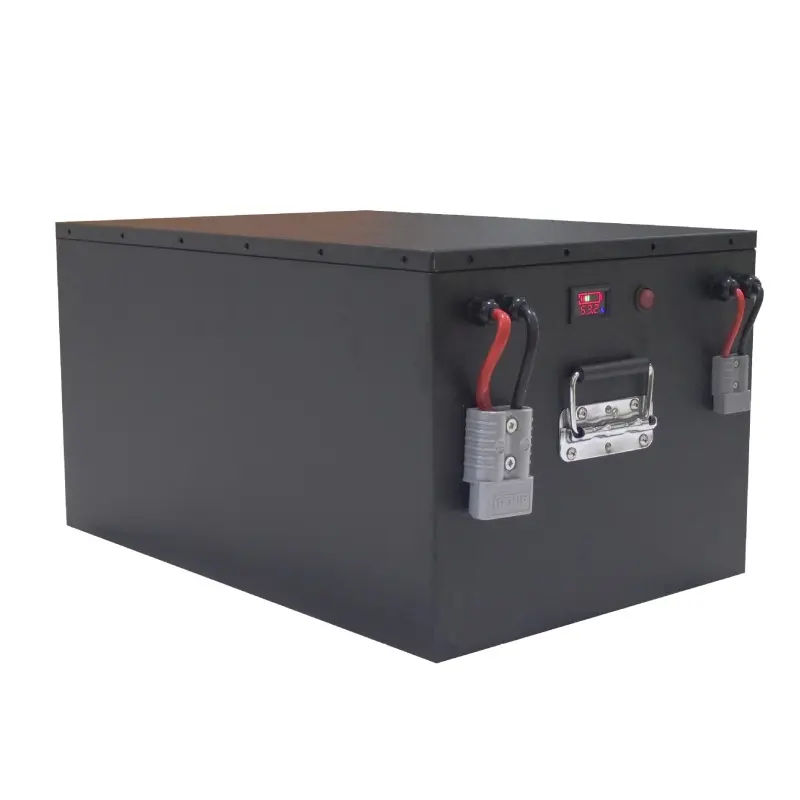

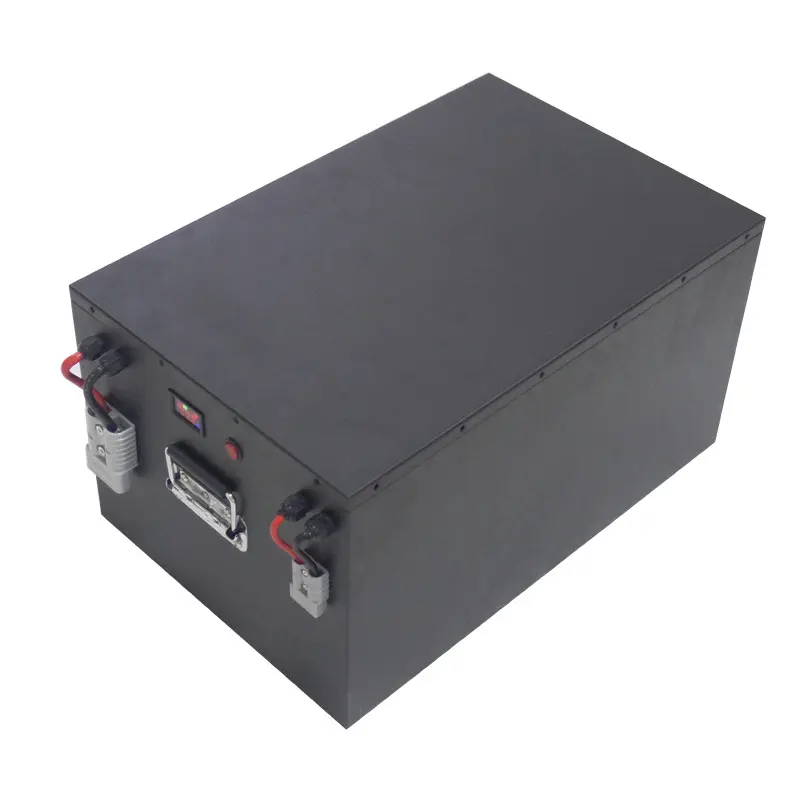

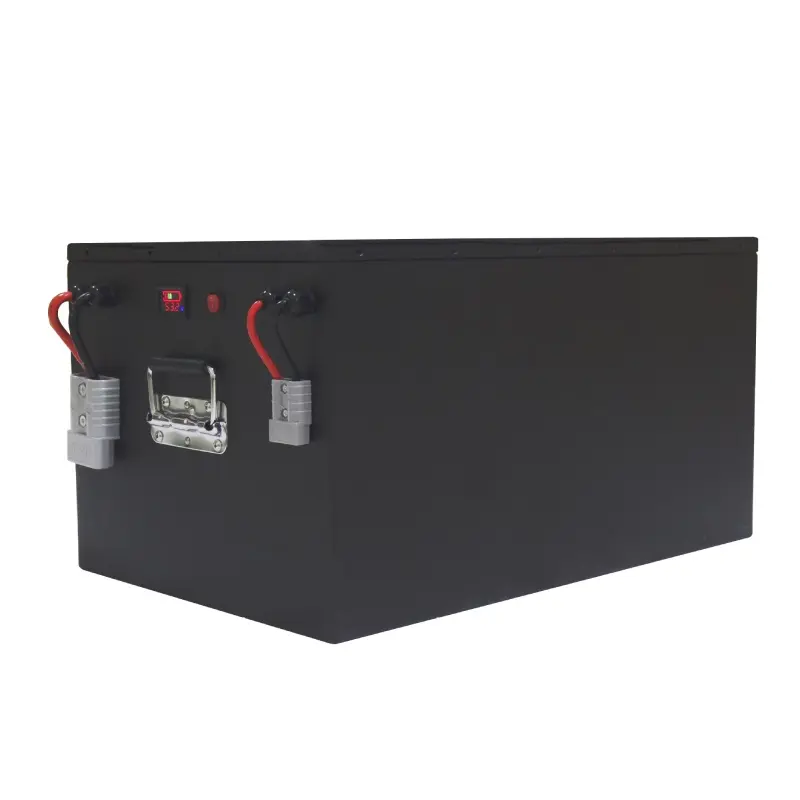

Batería de fosfato de hierro y litio Lifepo4 72V 50Ah para bicicleta eléctrica, motocicleta, carro de golf

2023-06-01 02:15

Especificación

Tensión nominal	72V
Capacidade nominal	50Ah
Resistencia interna	≤220mΩ
Ciclo de vida	2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod
End of charge Voltage	14,6V
End of charge Current	100mA
Max.Continuous charge current	50A
Método de carga	0.2C (0.5A) CC/CV
End of discharge Voltage	9.2V
Max. Pluse Discharge Current	50A/10S
Charge Temp	0 ~ 45 ℃
Discharge Temp	-10~55℃
Storage Temp	-10 ~ 45 ℃
Dimension(D×W×H)	332*170*220mm
Peso	≤20Kg
Sistema automático de protección de batería incorporado	Si

Charge plugs and Discharge connectors optional

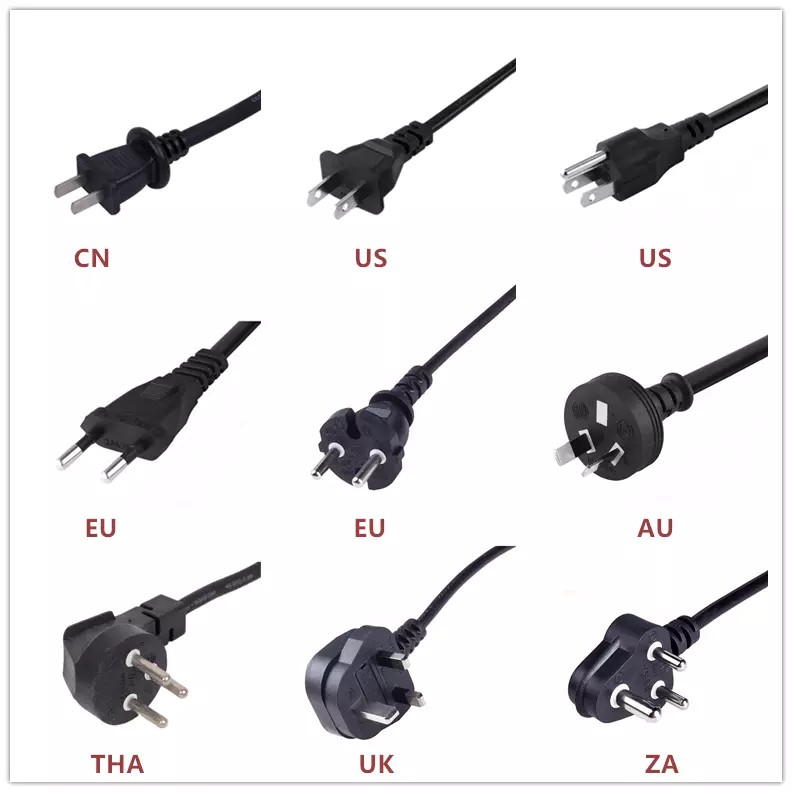

1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without request

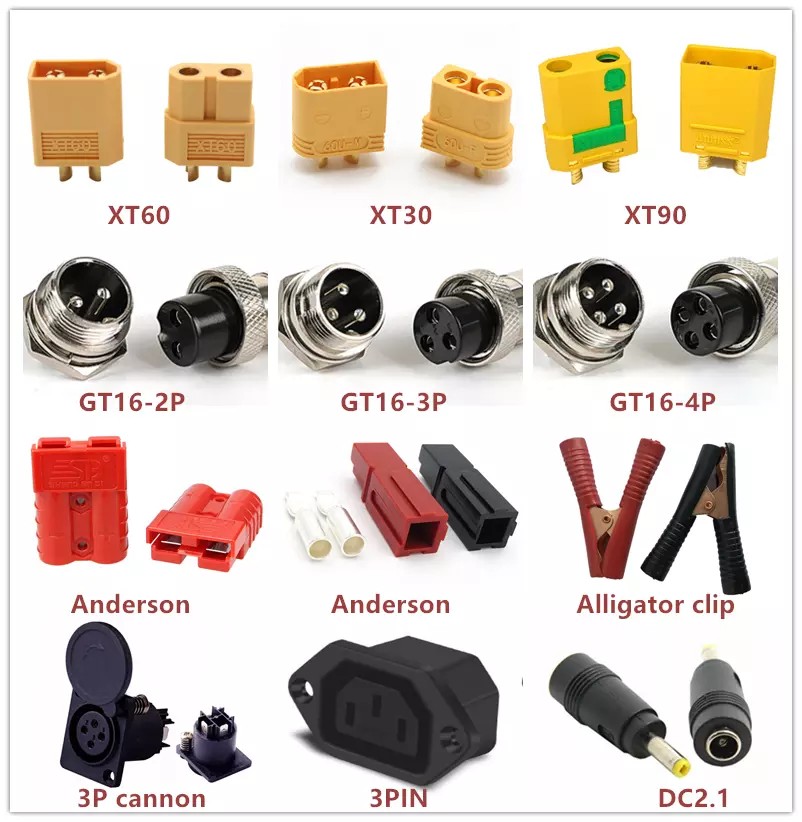

2.Discharge Connector: There are 12 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.

características

1.Lighter weight, smaller size

2.High temperature performance

3.Extremely safe, no explosion, no fire under collision

4.Resistencia á sobrecarga e retención de carga

5.Strong charging acceptance and quick-charging capability

6.Maintenance-free and no acid or water for maintenance in usage

7.Large capability and long life for all high power output applications

8.Environmentally friendly non-toxic, non-contaminating, no rare metal.

9.Low self-discharge and good discharge performance at low temperature

10.Excellent large current discharge performance especially in startup and climbing

OEM

We also can customize the battery 12v/24v/36v/48v/72v 100h,120ah,200ah,300ah,400ah,800ah with metal box. The size and shape are flexible according to your given size. And if necessary, we can offer a remote LCD display to monitor the battery status.
To welcome the world cooperation we accept OEM with your logo design.



 Aplicación

Aplicacións

* Electric Vehicles for Commercial and Commuting * Electric Scooter * Golf Cart/ troller * Electric Mobility * Electric Motorcycle * Electric Bicycle * Electric Wheelchair * Electric Power Mower * RV (Recreational Vehicle) * AGV (Automatic Guided Vehicle) /AGV cars/ AGV robots/ Self-guided



A nosa fábrica

FAQ

1,Q: What's the main product in AIN?
A: Rechargeable battery. NiMH, Li-ion, Lipo battery and power battery pack.
2, Q: Que é o sobrecusto?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.
3, P: Que hai de máis de descarga?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance.
4. P: ¿Podo ter unha orde de mostra?
R: Si, aceptamos a orde de mostra para probar e comprobar a calidade. As baterías pódense fabricar segundo o requiran.
5. P: Ten límite de MOQ?
R: Si, temos límite de MOQ para a produción en masa, pero depende do modelo de batería. Póñase en contacto connosco para máis detalles.
6. P: Que tal o tempo de entrega?
R: As mostras tardarán entre 5 e 7 días laborables. A produción en masa tardará entre 25 e 30 días. Depende da cantidade.
7. Q: Que tal o envío e o tempo de entrega?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. P: E o servizo posvenda?
A: We will offer you 2 years guarantee. If there are any problems, please inform us, we will offer you positive solutions.
