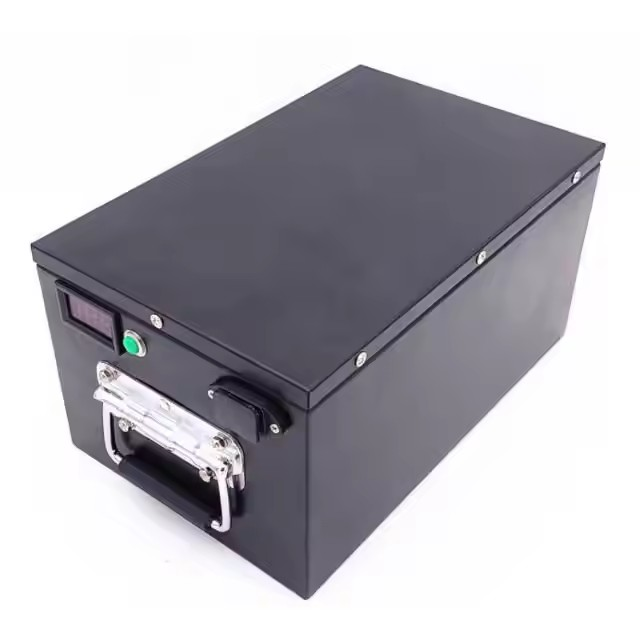

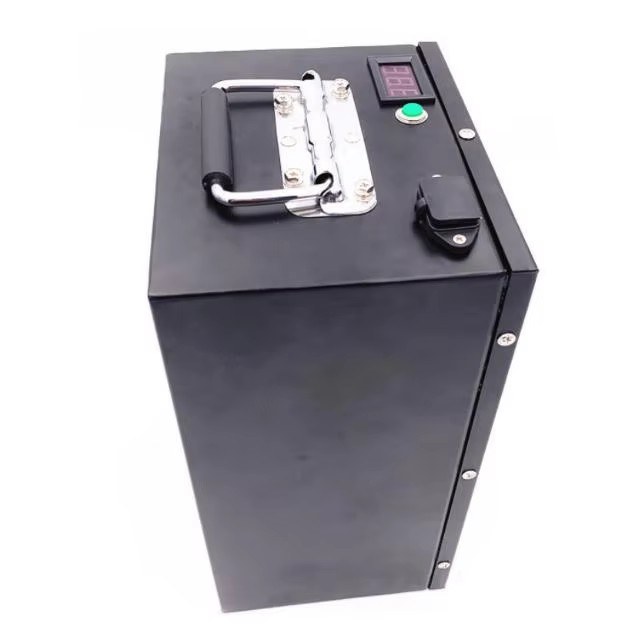

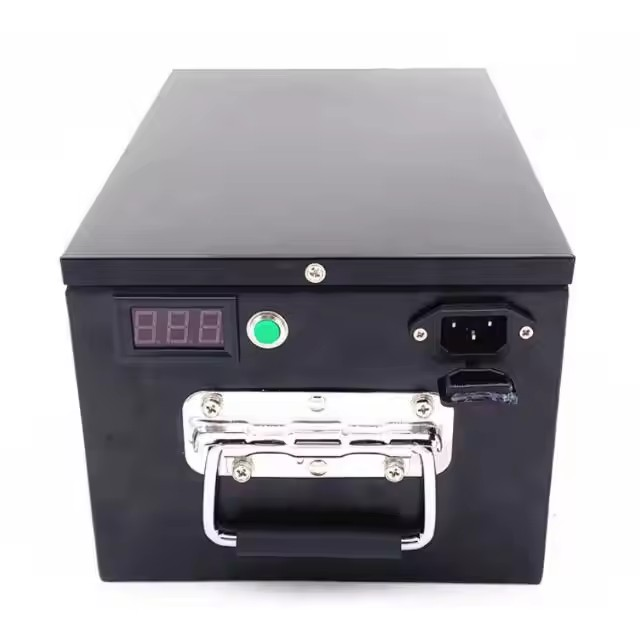

60V 100Ah LiFePO4 Lithium Ion Battery For AGV Smart Robot

2025-01-13 05:29

Especificación

Elemento	Especificación	Nota
Tensión nominal:	60V	Any voltage can be customized
Nominal Capacity:	100Ah	Any capacity can be customized
Discharge Cut-Off:	47.5V
Charge Cut-Off:	69.3V
Charge Current:	30A	Free customization service
Cont. Discharge:	100A	Free customization service
Peak Discharge:	200A	Free customization service
Impedancia:	≤200mΩ
Charge Temperature:	0℃ - 45℃
Discharge Temperature:	-20℃ - 60℃
Charge Method:	CC / CV
Life Cycle:	6000 times	80% DOD, Max. 100% DOD
BMS:	With BMS
Dimensión:	Flexible	Any dimension can be customized
Peso:	120KG

características

• More than 6000 Cycles
  • Battery modules available for parallel and series for higher voltage and capacity
  • BMS Passive cell balance function
  • IP66, IP67, water proof, dust proof, Temperature monitoring
  • Customization for Size and Discharge and charge rate
  • Free of Maintenance, contains no poisonous material
  • No leakage, no hazardous chemistry
  • Quick delivery
  • Lighter in weight, smaller in size to save space.
  • Powerful to increase robust operation for your marine boat or RV
  • Fast charging and high power discharge rate available
  • No need to add water nor worry about maintenance.
  • We offer 5 years regular warranty and it can be extended up to 10 years.

BMS incorporado

Elemento	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
Cargar Protección contra corrente	Charge Over current detection current	1~100A
	Charge Over current detection delay time	0.02S~ 6S
Descarga Over current protection	Discharge Over current detection current	1~600A
	Discharge Over current detection delay time	0.02S~ 6S
Curto protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Current consumption	Current consume in normal operation	1.5mA Type
Current consumption	Current consume in sleep operation	2 uA Type

Note BMS is customizable. More advanced functions available, such as Bluetooth, RS485, CAN, Autocratically Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!

LIFEPO4	Dimensións	Peso	with BMS	RS485/Bluetooth	Cycles	Garantía
60V 10AH	195*165*175mm	9.5kg	Si	Dispoñible	6000times	5years
60V 20AH	330*175*220mm	19 kg	Si	Dispoñible	6000times	5years
60V 30AH	407*175*235mm	25 kg	Si	Dispoñible	6000times	5years
60V 40AH	407*175*235mm	28 kg	Si	Dispoñible	6000times	5years
60V 50AH	525*240*215mm	44kg	Si	Dispoñible	6000times	5years
60V 120AH	420*360*550mm	84kg	Si	Dispoñible	6000times	5years
60V 200AH	1000*600*182mm	156kg	Si	Dispoñible	6000times	5years

Self-heated Function (Optional)
To relieve winter range anxiety in some freezing environment, the BMS can bring with
self heating function. Resistance heating rapidly warms the inside of battery.
Start heating temperature:≤0°C. Stop heating temperature:≥10°C.
Can improve battery charge / discharge performance.

Aplicación

A nosa fábrica

ALL IN ONE is a lithium battery Manufacturer for over 15 years, recognized by customers from

Australia,Europe and North America.We offer Top quality with very good price for lithium lifepo4 batteries!



FAQ

1.Q: Do you support a sample order?

A: Yes, welcome to order sample, we have warehouses in the United States and Europe, some samples can be quickly shipped.

2.Q: Does the product have a built-in BMS?

A: Yes, intelligent BMS including JBD/PACE/SmarTec built-in to ensure batteries are under smartly managed.

3.Q: Can your company accept customized order ?

A: Of course, customization is our strength.

4.Q: Can the battery pack be compatible with the inverters on the market?

A: Yes sir, our packs are compatible with more than 20 inverter brands on the market including Victron, Goodwe, Solis, Growatts, Voltronics, Deye and other famous brands.

5.Q: How is the Warranty?

A: 5 years upto its usage.

6.Q: Do you have any certifications?

A: CE, UN38.3 and MSDS, Pack UL1973 is under processing.

7.Q: How's the delivery way and time?

A: 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.Q: Do you have real factory?

A: Yes, our factory is in Anhui. We welcome you to visit our factory.
