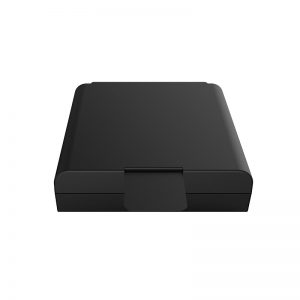

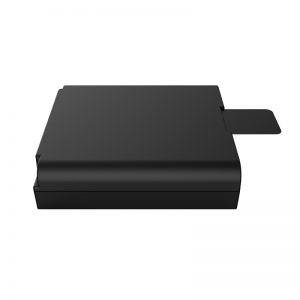

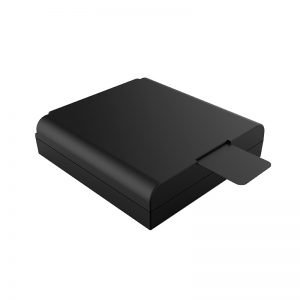

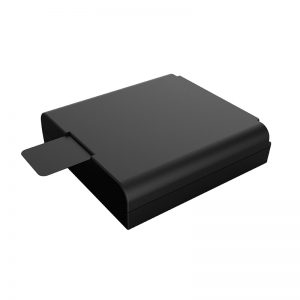

14,8V 3200mAh 18650 Batería de ión de litio Batería LG para dispositivos médicos con comunicación SMBUS

2020-08-25 06:51

14,8V 3200mAh 18650 Batería de ión de litio Batería LG para dispositivos médicos con comunicación SMBUS

• Model number:AIN14/8-3200
• Tensión nominal: 14,8V
• Nominal capacity:3200mAh
• Battery cell:18650/3200mAh/3.7V
• Dimension:81*76*10.1mm（Max）
• Application: medical power supply

Detalle do produto

Cell model：18650/3200mAh/3.7V

Battery specification: 18650-4S1P/14.8V/3200mAh

Tensión nominal ： 14,8V

Nominal capacity：3200mAh

Tensión de carga: 16,8V

Charging current: ≤2.5A

Discharging current: 3A

Instant discharging current: 5A

End-off voltage: 12V

Internal resistance: ≤400mΩ

Battery weight: 210g

Product dimension: 81*76*10.1mm（Max）

Temperatura de carga ： 0 ～ 45 ℃

Temperatura de descarga: -20 ～ 55 ℃

Temperatura de almacenamento: -20 ~ 45 ℃

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, Sumbus communication, etc.

Application field: medical power supply

Características do produto

1. Current: maximum sustainable discharge current is 5A.
2. Data communication management: adopt imported software management chip, SMBus communication function, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.
3. Battery characteristics: adopt imported LG battery with ultra large capacity.
4. A batería ten unha longa vida útil, que se axusta ao principio de baixo contido de carbono, conservación de enerxía e protección do medio ambiente.
